CRC NF Precision Cleaner (Non Flammable)

1. GENERAL DESCRIPTION

A unique non-flammable precision cleaner for electrical- and electronic equipment. Chlorinated hydrocarbons (1,1,1-trichloroethane), chlorofluorocarbons (CFC's) and hydrochlorofluorocarbons (HCFC's) are extremely effective solvents, and replacing them is not a matter of simply "plugging-in" another solvent. Application trade-offs may need to be made and it is important that factors as :

• evaporation rate

• residue

• flammability

• flashpoint

• compatibility to plastics be seriously considered.

CRC N.F. PRECISION CLEANER is the first alternative on the market that meets the highest performance characteristics :

• chlorinated hydrocarbon free

• CFC and HCFC free

• solvent based

• non-flammable

• fast evaporation rate.

2. PERFORMANCE CHARACTERISTICS

* as detailed in Typical Product Data (overleaf)

3. FEATURES

• A high purity, effective, precision cleaner to meet today's environmental and safety laws

• Composed of fast drying hydrofluorocarbons (HFC's) with high cleaning power

• No ozone-depleting action (ODP = 0,00)

• Improves the performance and reliability of electronic equipment by cleaning contacts and components quickly and effectively

• Removes flux traces, light oils, finger prints and other contaminants from electrical/electronic equipment

• Reduces contact resistance, arcing and wear, and thereby extending the life of sensitive equipment.

• Non-conductive and non-corrosive; it evaporates completely, leaving no residue

• Safe on commonly used metals, elastomers, plastics and coatings

• Equipped with the 360 (upside-down) spray valve for added convenience

• Low VOC -content : <10%

• High dielectric strength

• Specifications : - Douglas Aircraft Company CSD#1

  - Boeing D6 - 17487, Revision L

4. APPLICATIONS

• CRC N. F. PRECISION CLEANER is suitable for cleaning and degreasing all types of electrical and electronic components where a shutdown is either impossible or very expensive

• Relays; switches; circuit breakers; alarm and signal systems; printed circuit boards; connectors; generators, contacts; laboratory- and test equipment; terminals; plugs and jacks; electromechanical assemblies; motor controls; sensors.

5. DIRECTIONS

• Spray liberally on surface to be cleaned and allow to run off. Use extension tube for precision application.

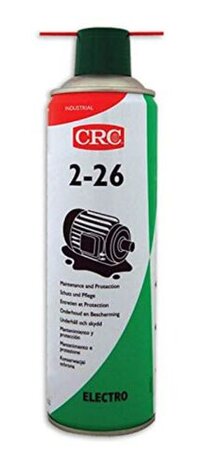

• To remove oxide and carbon deposits, use an abrasive and rinse off intermittently with CRC N. F. PRECISION CLEANER. Re-lubricate with CRC 2-26 if necessary.

• It is not necessary to switch off electronic/electrical equipment during cleaning. However, it is recommended, while risk of electrical shock can occur when spraycan itself makes accidental electrical contact.

6. TYPICAL(*) PRODUCT DATA

General description : Precision cleaner for electronic equipment

Flammability : No flame extension FEA 607-E

Passes drum test FEA X610-E

Plastics compatibility :

- Bellcore test results :

Noryl : pass

ABS : pass

Lexan : pass

- KB value : <30

Cleaning Power : Cleans 80% of an artificial soil based on LP-100

(CFC113 = 90%)

Evaporation : Evaporation rate 3,5 (ether = 1)

Dielectric strength : 27,3 kV (ASTM D - 877 - 87)

Density of active ingredient : 1,413

Appearance : Clear colourless liquid

7. PACKAGING

aerosol : 12 x 300 ml
